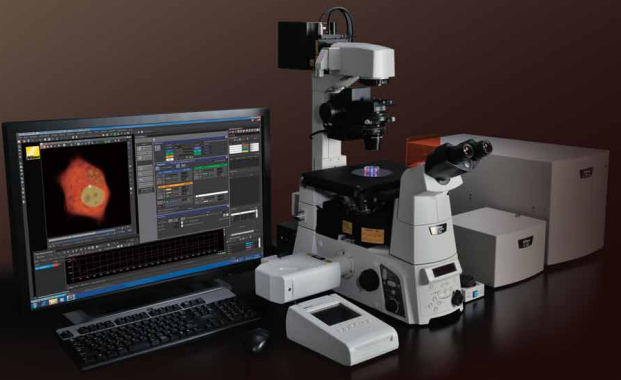

Nikon C2+ 共軛焦顯微鏡

Nikon 第二代個人實驗室使用的雷射共軛焦顯微鏡,是市場上最精巧的掃瞄器,不僅合使用者空間運用,並擁有卓越的光學系統,與多功能性軟硬體設計,一舉將雷射掃瞄速度提升二倍;而高速galvano scanners,更可將速度拉升至100 fps。另外,新增的GaAsP Spectral detector磷砷化鎵光電倍增管,敏感度更高,是個人實驗室的最佳選擇。

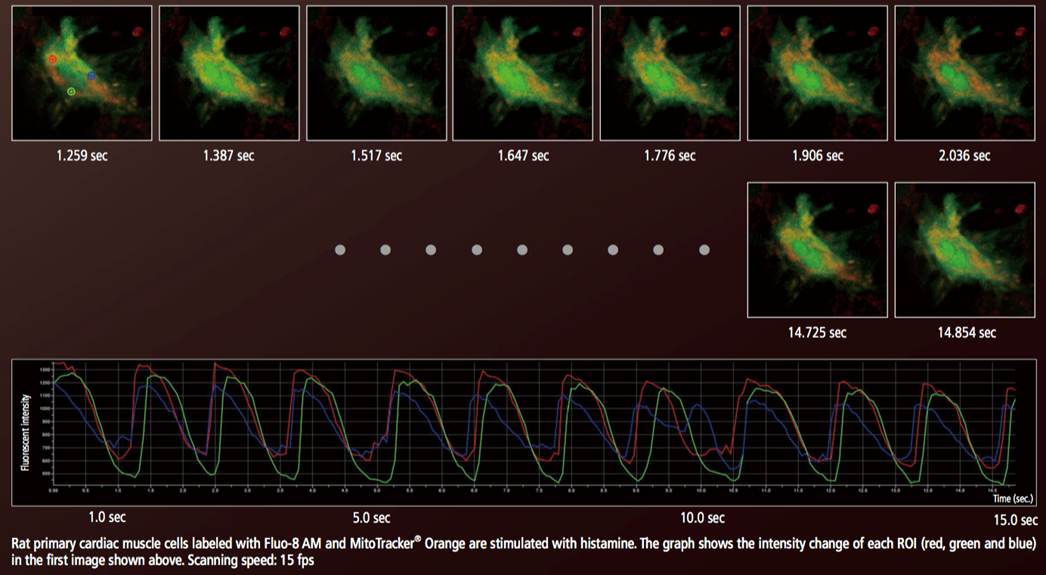

高速擷取高畫質影像:
C2+利用pixel shift correction mechanism,修正傳統confocal system在Fast bi-directional scanning掃瞄模式下的像素位移,達到高速擷取目的。

直觀的操作介面:

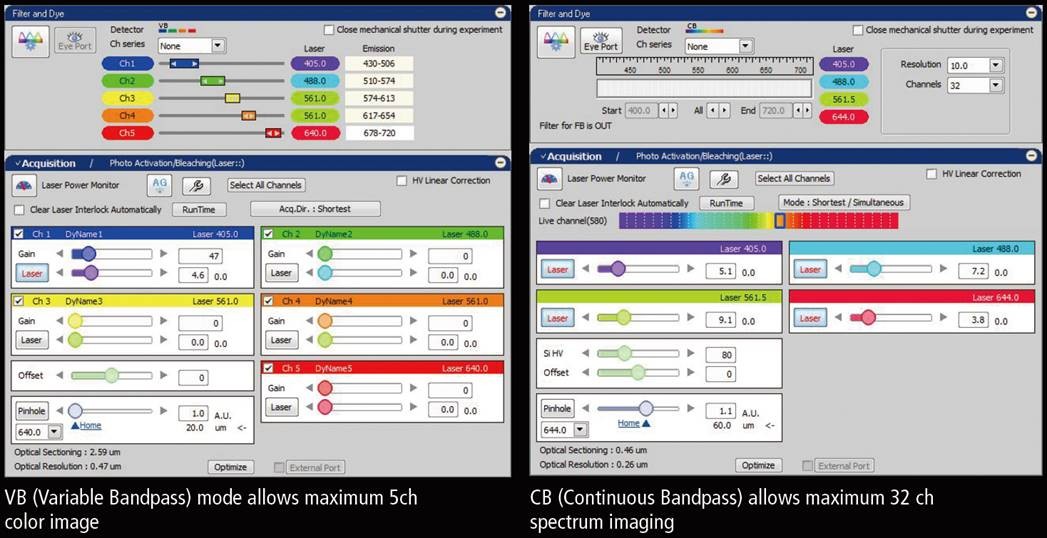

搭配NIS-Elements影像操控軟體,可直觀操作Nikon顯微鏡與第三方硬體,協助完成各式各樣的實驗需求;因此不論是初學,亦或高手級共軛焦顯微鏡使用者,皆可快速上手。
![]() |
![]() |
![]() |
![]() |
影像品質-堅若鑽石:
-

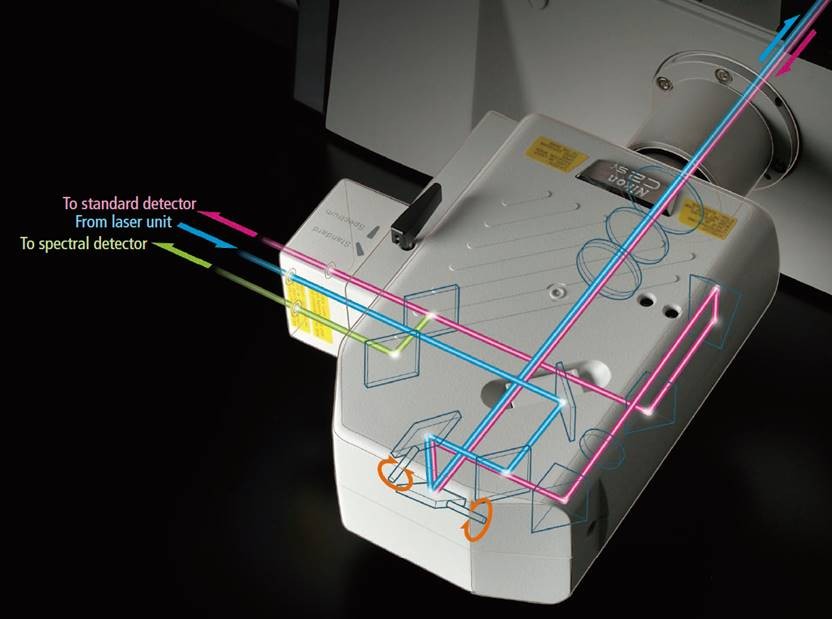

高效率掃瞄頭搭配訊號感測器

-
高清晰度穿透式DIC影像
![]() |
![]() |
DIC image | Overlay of DIC and fluorescence images |
-
運用特殊奈米鍍膜技術Nano Crystal Coat technology,光線穿透率大大提升
![]() |
![]() |
強化型光譜影像偵測器:
-

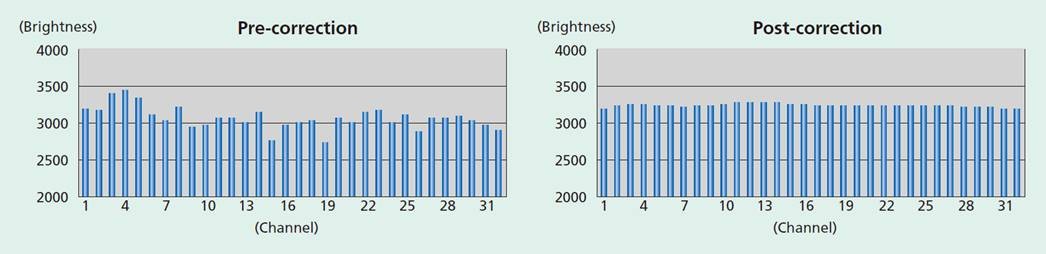

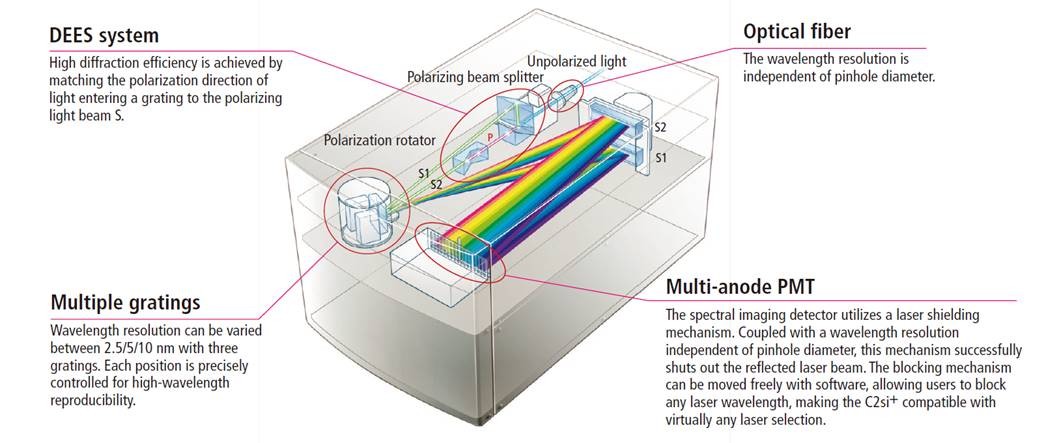

C2-DUS Spectral Detector Unit : 32支可調校PMT感測器,一次掃瞄可涵蓋320nm波長範圍的訊號,波長解析度高達2.5nm。


-
C2-DUVB GaAsP Detector Unit:
新型磷砷化鎵偵測器首次裝載於C2+系列,提供更高感測能力,可調式收光感測,讓使用者自定收光範圍,完成共軛焦光譜成像。



物鏡優化—λS與TIRF系列:
-

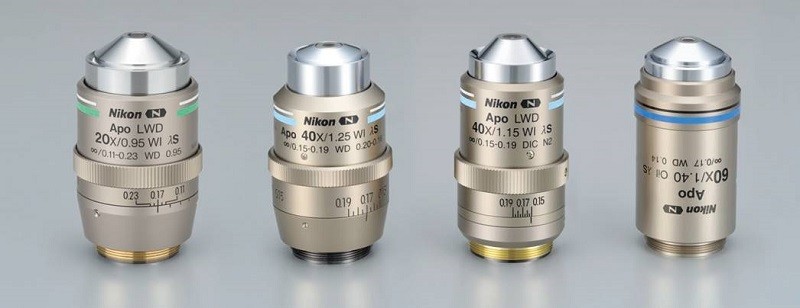

λS 系列物鏡:運用Nikon獨有的奈米晶粒塗層技術,有效增加光線的穿透率。

-
TIRF系列物鏡:N.A.值高達1.49,
CFI Apochromat TIRF 60x oil / 1.49 (left)
CFI Apochromat TIRF 100x oil / 1.49 (right)
Laser Unit雷射模組:
-
LU-N4/N4S 4-laser unit, LU-N3 3-laser unit
Wavelength波長
|
Laser type 雷射型式
|
Output power光纖輸出能量
|
405nm
|
LD
|
15mW
|
488nm
|
LD*
|
15mW*
|
561nm
|
DPSS
|
15mW
|
640nm (for LU-N4/N4S)
|
LD
|
15mW
|
* LU-N4S的488nm雷射配備DPSS laser,光纖輸出能量為8mW.
-
LU-NV Series:最多可配置8支不同波長雷射,並經由7個光纖輸出,提供最大的運用彈性。
Wavelength波長
|
Laser type 雷射型式
|
Output power光纖輸出能量
|
405nm
|
LD
|
20mW
|
455nm
|
LD
|
20mW
|
458nm
|
DPSS
|
18mW
|
488nm
|
DPSS
|
20mW, 45mW, 70mW
|
514nm
|
DPSS
|
20mW, 40mW
|
532nm
|
DPSS
|
40mW
|
561nm
|
DPSS
|
20mW, 45mW, 70mW
|
594nm
|
DPSS
|
20mW
|
640nm
|
LD
|
20mW, 40mW
|
647nm
|
Fiber
|
125mW
|
★Nikon C2+ specifications規格表:
C2+
|
|
Laser unit
|
LU-N3 : installed laser 405 nm, 488 nm, and 561 nm, Cannot be used with C2-DUS spectral detector
LU-N4/N4S : installed laser 405 nm, 488 nm, 561 nm, and 640 nm, Use LU-N4S when using C2-DUS spectral detector
LU-NV series : mountable laser 405 nm, 445 nm, 458 nm, 488 nm, 514 nm, 532 nm, 561 nm, 594 nm, 640 nm and 647nm
|
Standard detector
|
Wavelength : 400-750 nm, Detector : 3PMTs, Filter cube: 2 filter cubes
|
Diascopic detector(option)
|
Wavelength : 400-700nm, Detector: 1 PMT
|
Scan head
|
C2+/C2si+ scan head: when configuring with C2-DU3 standard fluorescence detector
Scanner: Galvano scanner, Pixel size: 2048 x 2048
Scanning speed: Standard mode; 2 fps (512 x 512 pixels, bi-direction), 17 fps(512 x 32 pixels, bi-direction), Zoom: 1-1000x
Fast mode; 8 fps (512 x 512 pixels, bi-direction), 100 fps (512 x 32 pixels, bi-direction)*1 , Zoom: 8-1000x
|
C2si+ scan head: when configuring with C2-DUS spectral detector
Scanner: Galvano scanner, Pixel size: max. 1024 x 1024 pixels
Scanning speed: 0.5 fps (512 x 512 pixels, single direction)
|
|
Scanning mode
|
X-Y, XY rotation, zoom, XYZ, time lapse, X-Z, stimulation, multipoint, image stitching (large image)
|
Pinhole
|
Circular shape, 6 size
|
Spectral detector(option)*2
|

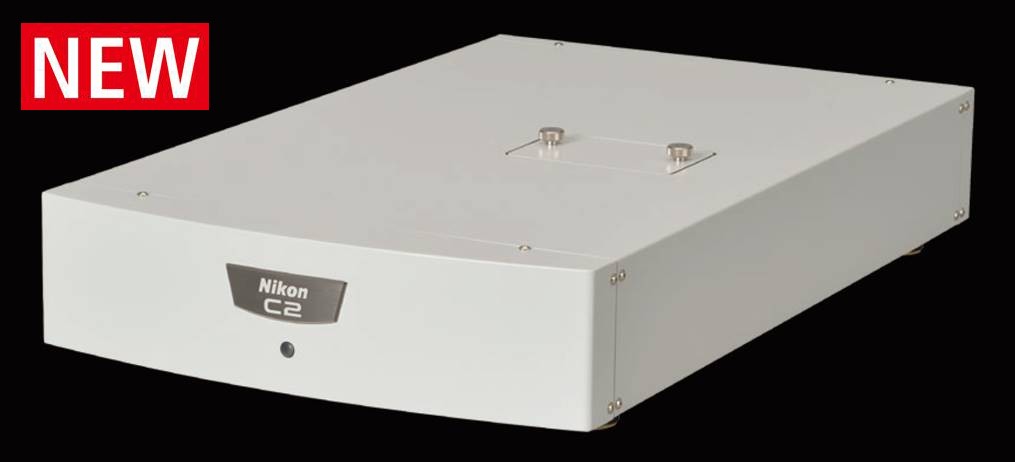

C2-DUS spectral detector unit
Number of channels: 32, Wavelength detection range: 400-750 nm, Spectral image acquisition speed: 2 fps (256 x 256 pixels)
Maximum pixel size: 1024 x 1024 (Spectral mode/Virtual filter mode), Wavelength resolution: 2.5 / 5.0 / 10.0 nm, Wavelength range variable in 0.25 nm steps
|
C2-DUVB GaAsP detector unit
Number of channels: 1 GaAsP PMT with variable emission plus 1 optional GaAsP PMT (C2-DUVB-OP) with a user-defined dichroic mirror and barrier filter, Wavelength detection range: 400 – 720 nm, narrowest: 10nm, broadest: 320 nm, maximum pixel size: 2048 x 2048 (CB mode/VB mode), Wavelength resolution: 10nm, Wavelength range variable in 1 nm steps
|
|
FOV
|
Square inscribed in a Φ18mm circle
|
Image bit depth
|
12 bits
|
Compatible microscopes
|
Inverted microscope ECLIPSE Ti-E/Ti-U, Upright microscope ECLIPSE Ni-E (focusing nosepiece type/focusing stage type)/Ni-U, Fixed stage microscope ECLIPSE FN1, Multi-purpose zoom microscope AZ100
|
Z step
|
Ti-E: 0.025 um, FN1 stepping motor: 0.05 um, Ni-E: 0.025 um
|
Software
|
Software: NIS-Elements C
Display/image processing/analysis
2D/3D/4D analysis, time-lapse analysis, 3D volume rendering/orthogonal, spatial filters, image stitching, multipoint time-lapse, spectral unmixing, real-time unmixing, virtual filters, deconvolution, AVI image file output
|
Application: FRAP,FLIP, FRET, photoactivation, colocalization, three-dimensional time-lapse imaging, multipoint time-lapse imaging
|
|
Control Computer
|
OS: Microsoft Windows 7 Professional 64 bit SP1, CPU: Intel Xeon E5-1630v3 (3.70 GHz/10 MB/2133 MHz/Quad Core) or higher, Memory: 4 GB, Hard disk: Serial ATA 6 Gb/s (7,200 rpm) 146 GB or higher, Data transfer: LAN, Network interface: Gigabit Ethernet, Monitor: 1600 x 1200 or highter resolution, dual monitor, Configuration is recommended
|
Dimensions and weight
|
C2+/C2si+ scan head 145 (W) x 236.5 (H) x 70 (D) mm, Approx. 2 kg
Controller 225 (W) x 404 (H) x 382 (D) mm, Approx. 12 kg
Standard detector 225(W) x 154 (H) x 224 (D) mm, Approx. 5kg
Spectral detector C2-DUS: 289 (W) x 323 (H) x 593.5 (D) mm, Approx. 23 kg,
C2-DUVB: 360 (W) x 91 (H) x 595.5 (D) mm, Approx. 9 kg
|
*1 The described frame rate is NOT available with Rotation, CROP, ROI, Spectral imaging and Stimulation.
*2 Only available with C2si+ scan head.
|
