Yokogawa

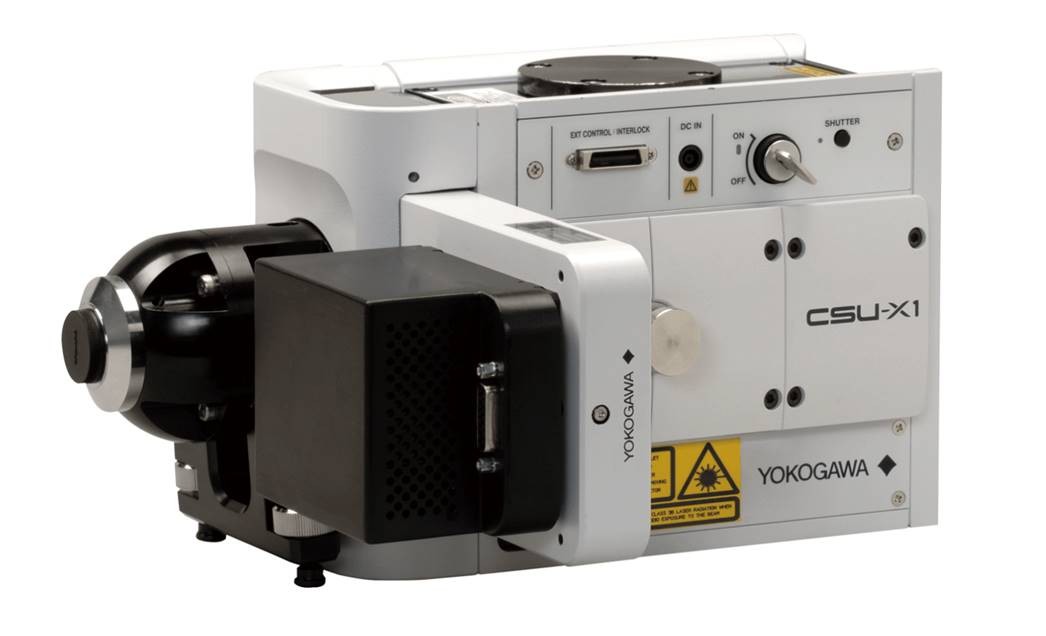

Yokogawa CSU-X1

Confocal Scanner Unit 高速版 共軛焦掃描器

Yokogawa CSU-X1 Confocal Scanner Unit高速版 共軛焦掃描器

拍攝活細胞動態影像的最佳工具

Faster超高速:

  • CSU-X1是CSU22/10共軛焦掃瞄器系列的進階機型,擁有世界最快的掃瞄速度,在全尺寸下最快可達2,000fps。
  • Yokogawa專屬的濾片轉盤,相鄰位置的切換速度高達33ms,亦是世界最快。

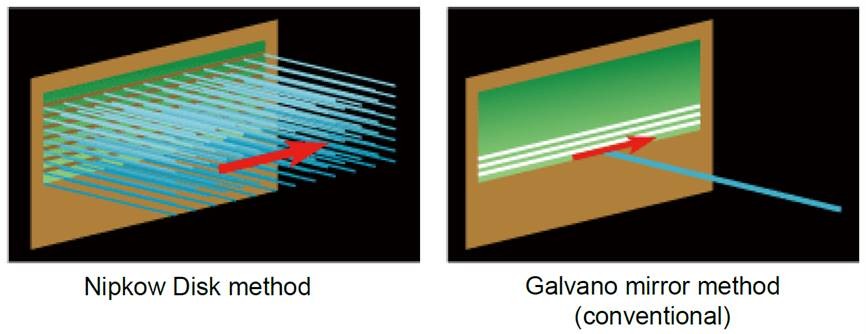

  • 關鍵技術:Microlens-enhanced Nipkow Disk Scanning Technology -- 雙碟片設計,在Nipkow碟片上佈滿20,000個針孔(pinhole),而在第二片旋轉碟片上則佈滿相同數量的微鏡頭(microlens);雙碟片同時高速旋轉時,可產生1,000束雷射光掃過樣品,有效降低photobleaching光漂白與phototoxicity光毒化現象,並可大幅提高成像速度。

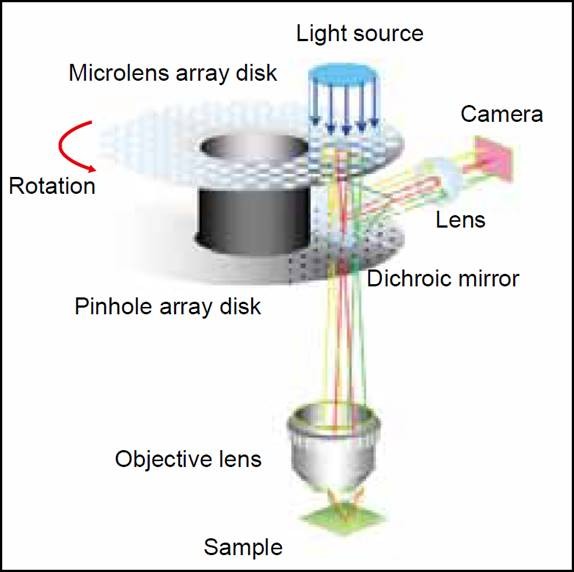

Microlens-enhanced Nipkow Disk Scanning Technology


Brighter更清晰

  • 專利設計Beam shaper lens,提升2倍雷射光激發效能,可進一步降低相機曝光時間。
  • 藉由濾除背景雜訊技術,提升3倍訊噪比(S/N),實現低照度拍攝的可能。
  • 運用高效率dichroic mirrors鏡片,達到亮度顯著提升。

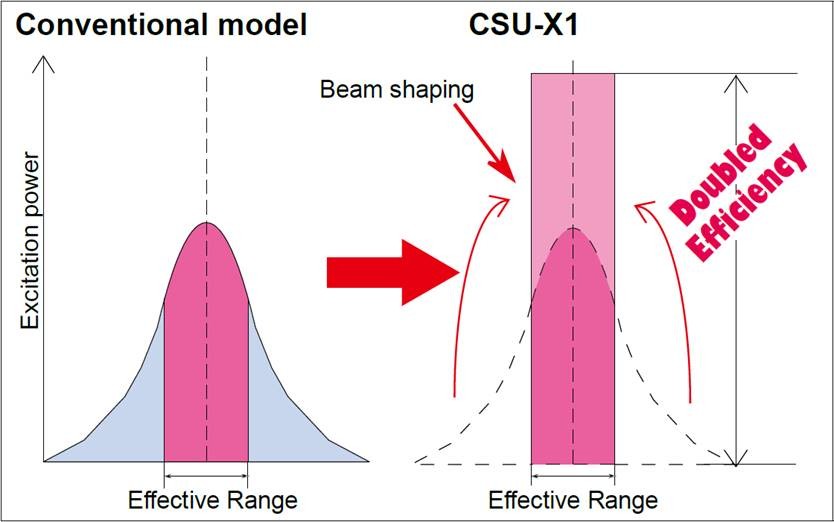

Beam shaper lens

Versatility更靈活多樣

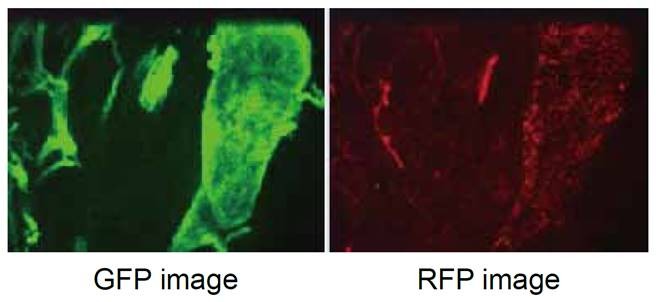

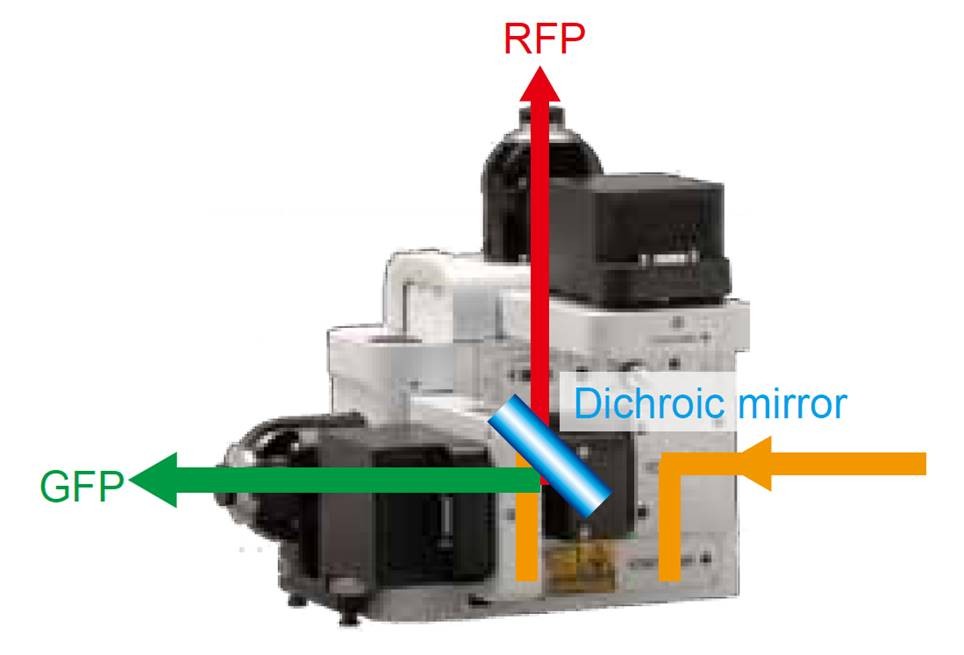

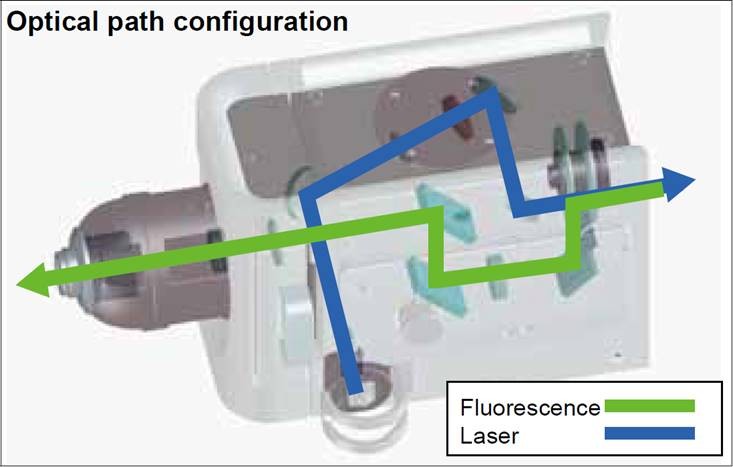

  • 雙相機輸出孔(選購) -- 因應實驗需求,可添購second camera port擴充埠,同時接收雙重螢光影像。
雙相機輸出孔

雙相機輸出孔

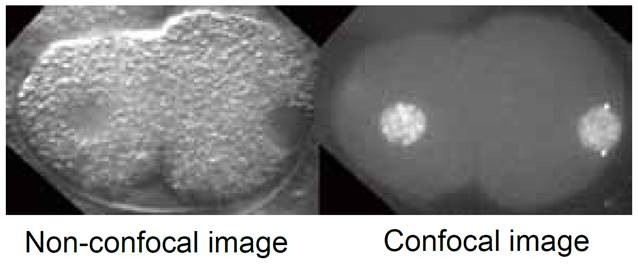

  • 全新明視野光路(選購)

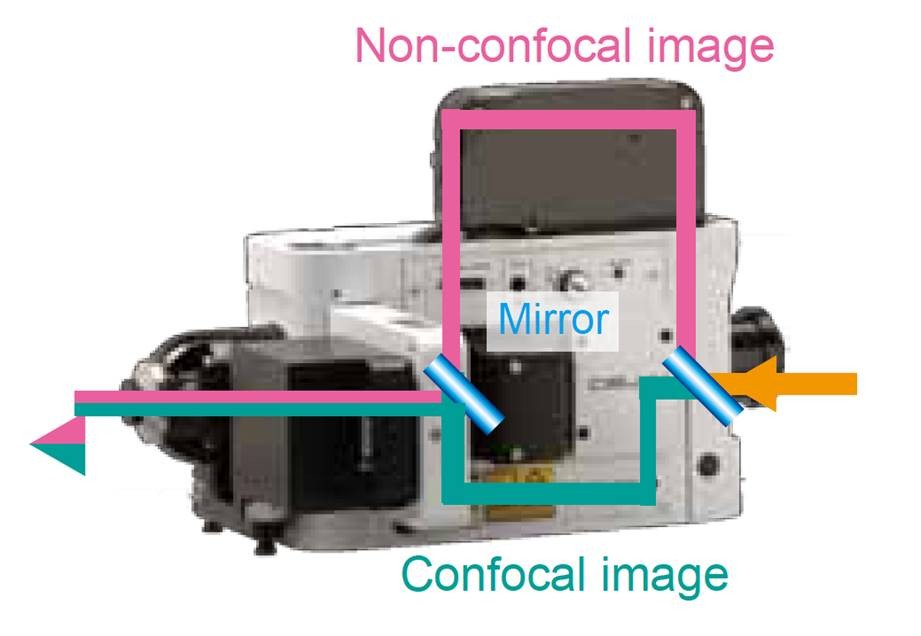

全新明視野光路
  • 更換dichroic mirror block、excitation filters和emission filters鏡片更為容易簡單。

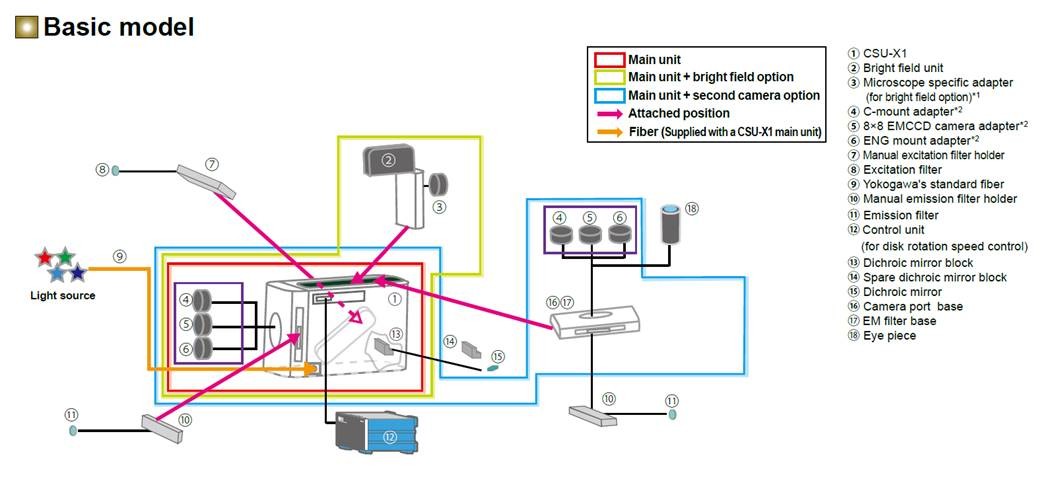

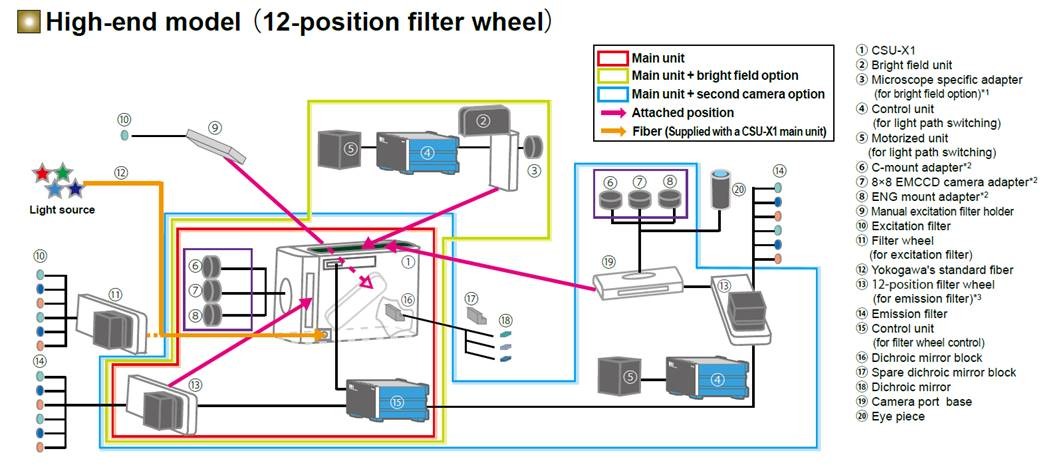

★系統架構(分三類):6-position filter wheel, 12-position filter wheel, Basic Model

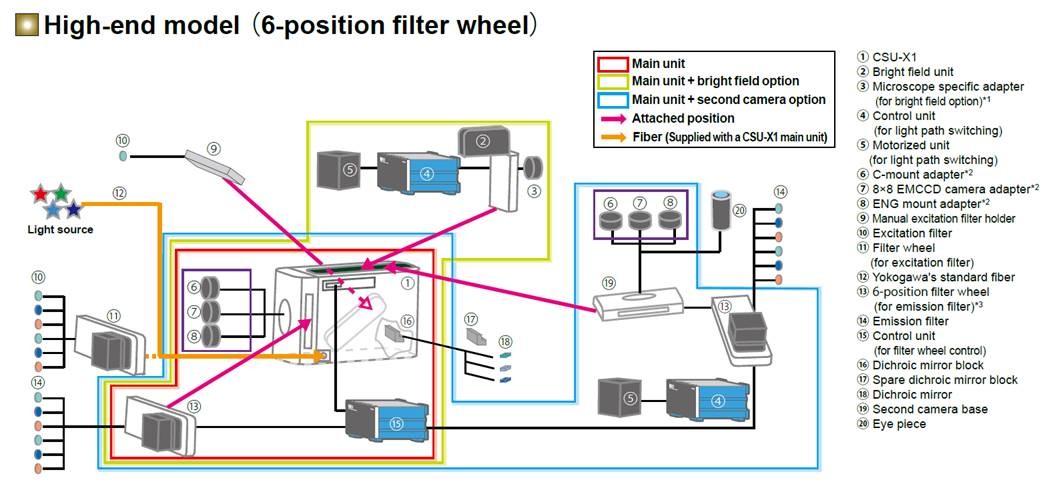

6-position filter wheel


★Specifications規格表

CSU-X1 High-end model

Main unit
Main unit + Brightfield
Main unit + secondcamera
Confocal scanning method
Microlens-enhanced Nipkow disk scanning
Scanning speed
Choice: 1,500~5,000 rpm (Standard) ;
1,500 ~1,000rpm
External synchronization
Scan-speed synchronization through pulse signals
Input : TTL level 300Hz ~ 2KHz
Corresponding to Nipkow disk spinning speed
1,500~10,000 rpm
Excitation wavelength
405~647nm
Second port
-
Brightfield
Second camera
Dichroic mirror
Option
Dichroic mirror switching
Automatic 3CH (Dichroic mirror block can be exchangeable)
Laser beam input
AFC-connector(Polished 8 degree)
Optical fiber
Yokogawa’s standard Single-mode polarization-preserving fiber
Filter wheel(Emission side)
Filter wheel with six filter positions
Emission filter
Option
Operation panel
Switch open / close of laser shutter
External control
RS-232C interface via Control unit
Microscope mount
C-mount adapter
Operating environment
15~40℃ / 20~75% RH
Power consumption(main unit)
24VDC 1A max.
Power consumption(AC adapter)
Input: 100 up to 240VAC±10%, 50 or 60Hz±3Hz, 75W max.
Output: 24VDC 2.5A max.
External dimension
175(W)x325.1(D)x328.5(H)mm
258.8(W)x325.1(D)x373(H)mm
308.5(W)x325.1(D)x328.5(H)mm
Weight
9.4kg
11.4kg
13.3kg

CSU-X1 Basic model

Main unit
Main unit + Brightfield
Main unit + secondcamera
Confocal scanning method
Microlens-enhanced Nipkow disk scanning
Scanning speed
Choice: 1,500~5,000 rpm (Standard)
1,500 ~5,000rpm (High-speed)
1,500~10,000rpm (High-speed)
External synchronization
Option
Excitation wavelength
405~647nm
Second port
-
Brightfield
Second camera
Dichroic mirror
Option
Dichroic mirror switching
Manual 1CH
Laser beam input
AFC-connector(Polished 8 degree)
Optical fiber
Yokogawa’s standard Single-mode polarization-preserving fiber
Filter wheel(Emission side)
-
Emission filter
Option
Operation panel
Switch open / close of laser shutter
External control
-
Microscope mount
C-mount adapter
Operating environment
15~40℃ / 20~75% RH
Power consumption(main unit)
24VDC 1A max.
Power consumption(AC adapter)
Input: 100 up to 240VAC±10%, 50 or 60Hz±3Hz, 38W max.
Output: 24VDC 1.6A max.
External dimension
175(W)x177.5 (D)x328.5(H)mm
258.8(W)x177.5(D)x373(H)mm
175 (W)x325.1(D)x328.5(H)mm
Weight
7.5kg
9.5kg
13.1kg
