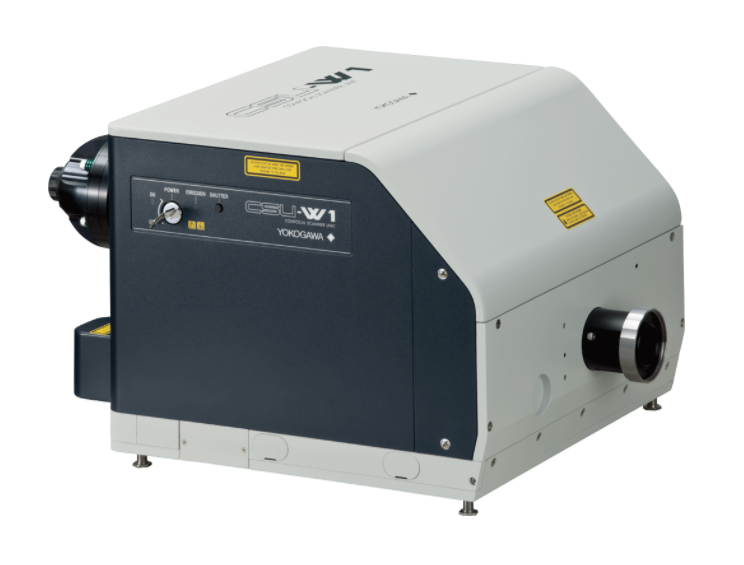

Yokogawa CSU-W1

Confocal Scanner Unit 全新進化版 共軛焦掃描器


共軛焦掃瞄器由原來的CSU10基本款,增強為可拍活細胞影像的高速CSU-X1機型;另外,針對研究人員求新求變的需求,我們的答案就是”CSU-W1”—可提供更大視野範圍與更清晰影像,所有切換模組皆為全電動,符合全自動化的實驗要求。

★CSU-W1共軛焦掃描器優點

image009.jpg image015.jpg image019.png

更寬廣:

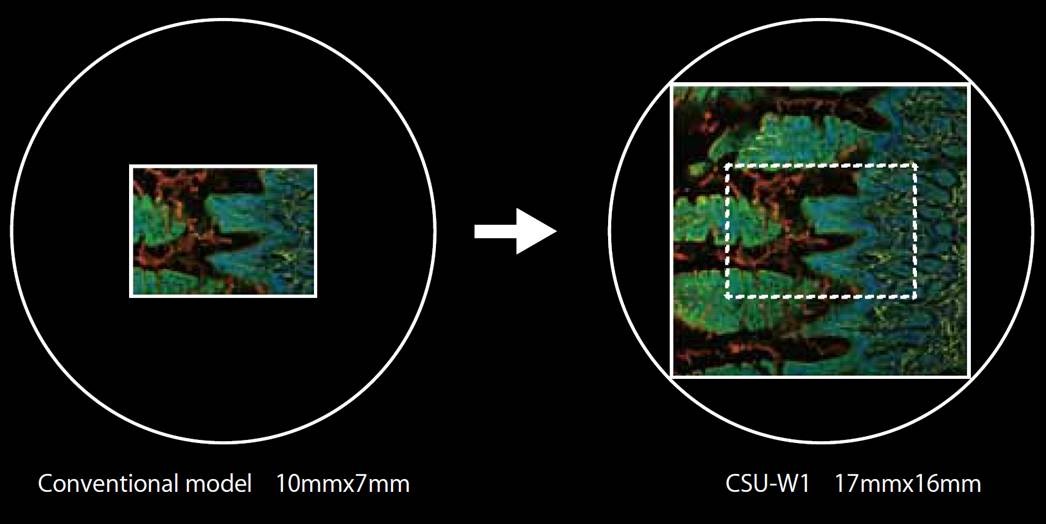

最廣的confocal視野!! 舊款的4倍大!!

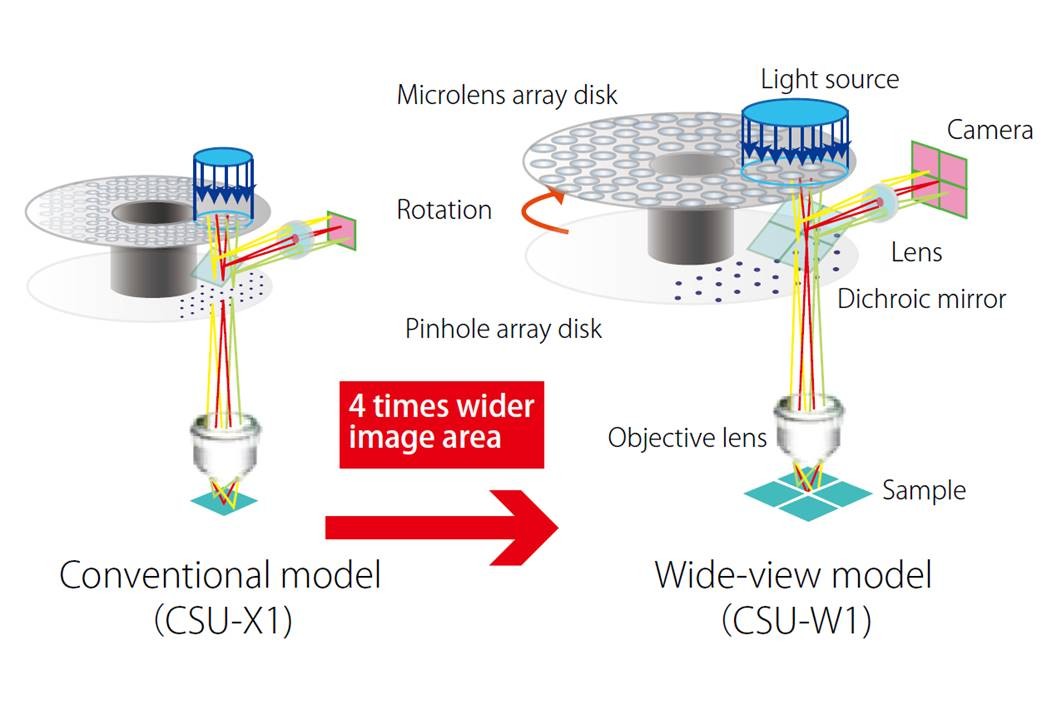

藉由加大旋轉碟片尺寸,可搭配大視野相機,一次拍到更多資訊,節省寶貴時間,並能避免光漂白、光毒性問題。

更清晰:

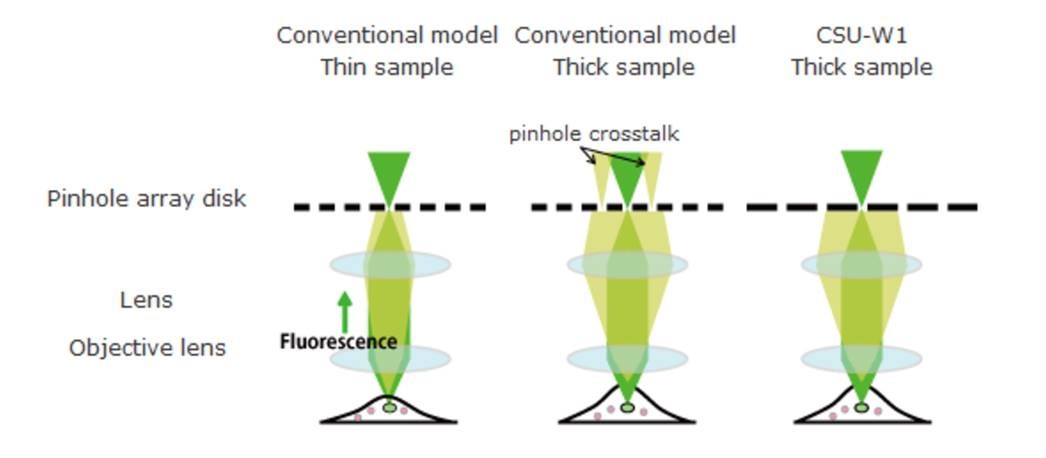

重新設計碟片,加大pinhole之間的距離,有效降低pinhole crosstalk,排除掉非焦距面雜訊者,影像訊噪比大幅提升。
Mouse ES cell colony
Fluorescent probe:  H2B-EGFP(Excitation: 488nm) , mCherry-MBD-NLS(Excitation: 561nm)
Objective lens: 60x silicone  ;  Z-sections/stack: 100um (0.4um/ 251 slices)
By courtesy of Jun Ueda, Ph.D. and Kazuo Yamagata, Ph.D., Center for Genetic Analysis of Biological Responses, The Research Institute for Microbial Disease, Osaka university

靈活多樣性:

  • High confocality pinhole高共軛性針孔(選購)
相較於傳統50um pinhole size,我們另外提供25um pinhole size尺寸碟片,您可任選一種或兩種皆買,並可簡易的切換電動組件。
  • 全新明視野光路(標配)

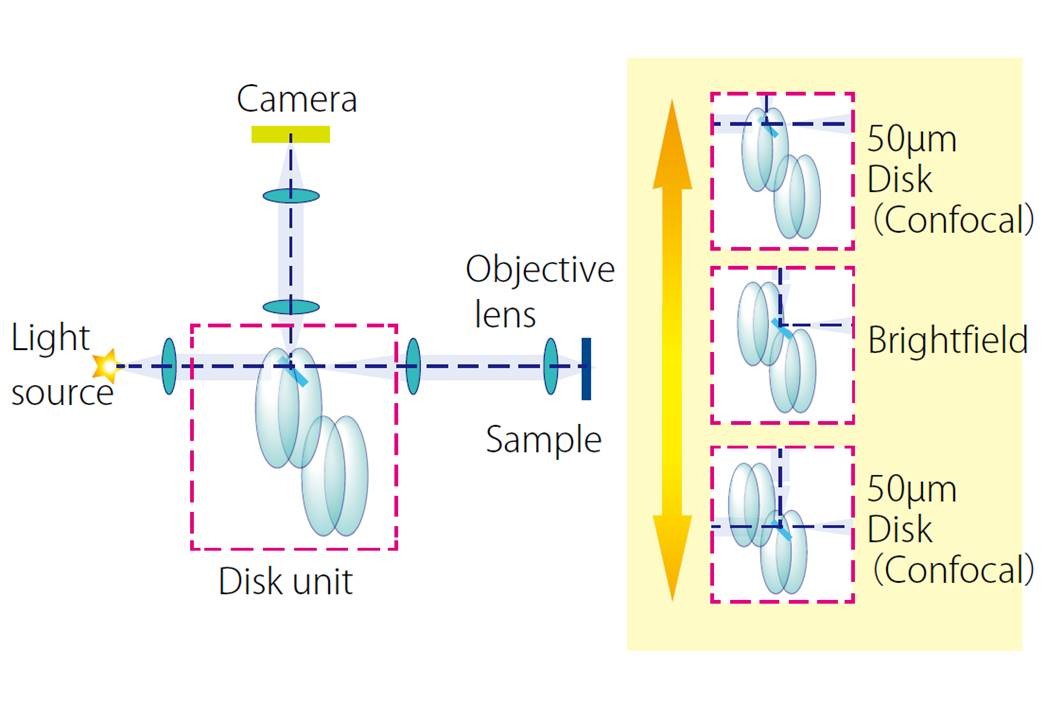

新架購可將碟片移出光路,讓影像輕易投射出來

CSU-W1 Option選購配件

  • Near Infrared (NIR) Port 近紅外線雷射光源輸入埠:波長可達785nm,對樣品的傷害性變得更小,並可與可見光雷射結合做同步激發。
  • External light path額外光路:可讓雷射光避開碟片直達顯微鏡,適用於photo activation光活化實驗。
  • Lens switcher倍率鏡切換器:新設計電動鏡片切換,更能配合不同相機的感光元件尺寸,在不更動物鏡下能更輕易改變放大倍率。
  • Variable aperture可變動式光圈: 可改變雷射出光範圍,讓成像區域改變,有效降低雷射對樣品的傷害。
Option選購
1 Camera model
2 Camera model
Split-view model
NIR port
External light path
Variable aperture
-
Camera port lens
Selectable from 0.83x, 1x
Selectable from 0.83x, 1x
Selectable from 0.83x, 1x
Additional lens to lens switcher
Selectable from 0.83x, 1x, 2x
Selectable from 0.83x, 1x, 2x
-

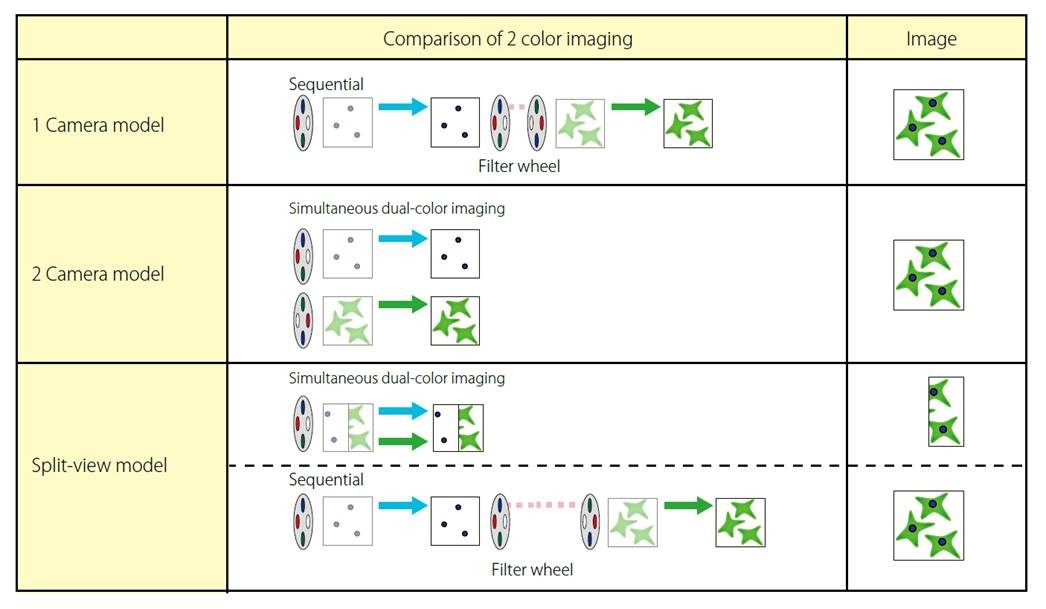

CSU-W1機型種類:


CSU-W1 General Specifications規格表:

CSU-W1
Model
1 camera model (T1)
2 camera model (T2)
Split-view model (T3)
Confocal scanning method
Microlens-enhanced Nipkow disk scanning
Spinning speed
1,500rpm ~ 4,000rpm Max200fps
External synchronization
Scan-speed synchronization through pulse signals Input/output : TTL level 300Hz up to 800Hz
Disk unit
Selectable up to 2 disks from 50um and 25um : Motorized switching
Bright field
Motorized exchange between confocal and brightfield
Effective FOV
17 X 16mm 【Option】Variable aperture
17 X16mm
Excitation wavelength
405nm ~ 785nm
Laser introduction
Yokogawa’s standard fiber*1, Beam shaping optics VIS port(405 ~ 647nm)
【Option】NIR port(685 ~ 785nm)
Excitation shutter
Built-in shutter,Opening and shutting time : 30msec or less, Opening and shutting cycle : 10Hz or less
Observation wavelength
420nm ~ 850nm
Dichroic mirror switching
Motorized 3CH (dichroic mirror block can be exchanged)
Emission filter wheel
Hole numbers
10-position filter wheel
6-position filter wheel
Filter size
ψ25mm
ψ25mm
Switching speed
100msec max. (Standard mode) 40msec max. (High speed mode)
100msec max.
External control
RS-232C (CSU-X1 command upper compatible)
Microscope mount
Yokogawa original mount adapter specific to each microscope
Camera adaptor
C mount 1x (Variable magnification : 0.83x)
Light introduction port
【Option】External scanner such as for Photo activation can be connected to the External light path
Operating environment
15 ~ 35℃, 20~75%RH  No condensation
Power consumption
Input : 100 ~ 240 VAC ± 10% , 50~60hz 250VA max
External dimension
Main unit
480(W)X327(L)X252(H)mm
480(W)X476(L)X252(H)mm
425(W)X374(L)X252(H)mm
Power unit
225.4(W)X151.9(L)X378.3(H)mm
Weight
Main unit
14.3kg
18.3kg
15.8kg
Power unit
4.5kg
Attachable microscope
Olympus IX series, Nikon ECLIPE Ti, Zeiss Axio Observer, Leica DMI series
*1 Each CSU-W1 head is optimized with its fiber at factory. Please inquire about fiber exchange if necessary.
