RETIGA R1


透過我們對於Image sensors及CCD元件的挑剔
RETIGA R1將重新定義您對CCD攝影機的認知
產品特性
▲螢光:75%影像轉換效率搭配機身致冷技術,大幅降低雜訊產生
▲操作:50MHz像素更新速率,找圖對焦不再Lag
▲品質:內建的Intelligent Quantification提供了更強大的real-time FPGA演算技術
▲介面:USB3.0介面,輕鬆對應任何電腦
▲價格:超高性價比
產品規格
CCD感光元件規格
|
|
Sensor Type
|
Sony ICX-825 Scientific Interline CCD (Monochrome or Color)
|
CCD Array
|
1360 x 1024
|
Pixel size
|
6.45μm x 6.45μm
|
Sensor Dimensions
|
8.8mm x 6.6mm (11mm diagonal)
|

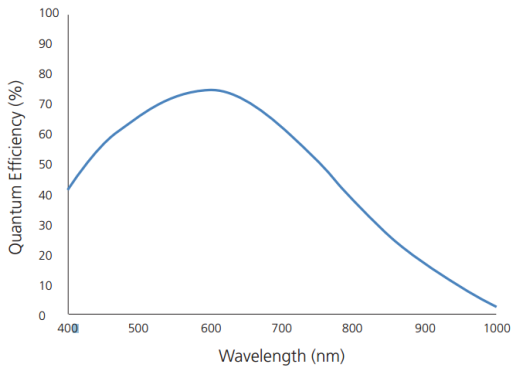

QE
|
75% at 600nm
|
FWC
|
>16,000e- single pixel (>22,000e- with on-chip binning)
|
攝影機規格
|
|
Digital Output
|
14 bit
|
Digitization Rate
|
USB3: 50MHz high frame rate
|
Read Noise
|
<7e¯ RMS
|
Frame Rate
|
25 fps at full resolution
40 fps binned 2x2
|
Exposure Time Range
|
25µs - 60min
|
Supported Binning Modes
|
1x1, 2x2, 4x4, 6x6, 8x8, 12x12, 16x16
|
Dark Current Rate
|
0.001 e/p/s at -15°C regulated
|
Sensor Cooling
|
-15°C stabilized at 22°C ambient Thermoelectric cooling with forced air
|
Intelligent Quantification Features (monochrome only)
|
Defect correction (nearest neighbor) Dynamic Dark Frame subtraction
|
支援介面規格
|
|
Computer Platforms/ Operating Systems
|
Windows 7 (64 bit), Windows 8 (64 bit), Windows 10 (64 bit) Refer to the QImaging website for the latest list of minimum computer recommendations
|
Digital Interface
|
USB3.0 (USB2 compatible at reduced max fps)
|
Triggering I/O Signals
|
Trigger In, Expose Out, End-of-Frame, Shutter Out
|
Supported Triggering Modes
|
Trigger First, Strobe, Bulb
|
機構規格
|
|
Optical Interface
|
1”, C-mount optical format
|
Mounting Hole Thread Size
|
1/4” - 20 thread, 4 sides
|

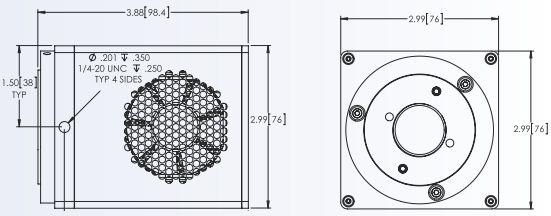

Camera Dimensions
|
98.4mm x 76mm x 76mm (length x width x height)
|
Weight
|
1.55lb, 0.72kg
|
Power Requirement
|
7.5V DC, 2.5A
|
