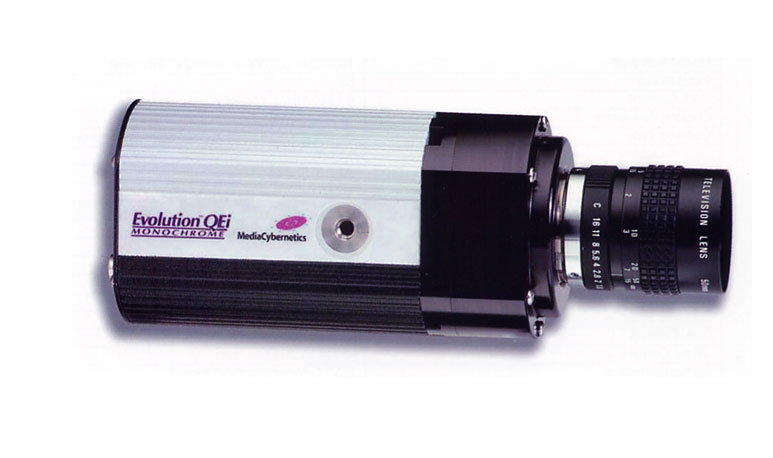

Evolution QEi Super High Sensitivity FireWire Camera Kit
|
The Digital Camera for Low-Light and Fluorescence Applications
|
|
Overview
Evolution QEi Digital Kits
include an image acquisition
solution perfect for low-light
and fluorescence
applications. These cameras
offer high-resolution
megapixel capability with the
convenience of a FireWire
(IEEE 1394) digital interface.
This monochrome digital
camera offers high speed,
low noise electronics for
rapid image capture
|
|
| CCD Sensor |
|
| 解析度 |
1360 x 1036 Light Sensitive Pixels |
| 晶片類型 |
2 /3” Sony ICX-285 progressive scan interline CCD monochrome |
| Pixel 大小 |
6.45μm x 6.45μm |
| Linear Full Well Capacity |
10,000 e - |
| 輸出雜訊 |
8 electrons |
| 冷卻功能 |
Yes |
| 暗電流 |
0.15 electrons/pixel/sec cooled |
| 冷卻類型 |
Peltier thermoelectric cooling to 25°C below ambient |
| 數位輸出 |
12-bit |
| 輸出頻率 |
20 MHz at 8-bit and 10 MHz at 12-bit |
| Frame Rate |
10 fps full resolution in 8-bit, 5fps in 12-bit. Higher speed with binning and ROI functions (up to 4x4 binning) |
| Camera |
|
| 作業系統 |
WindowsR 2000 & XP |
| 介面 |
IEEE 1394 FireWire |
| Shutter |
Electronic shutter, no moving parts |
|
Application
- Brightfield, Phase-Contrast, & Darkfield Microscopy
- Fluorescence Microscopy
- Live-Cell Imaging
- Pathology, Histology, & Cytology
- FISH
- Ca++ Ratio Analysis
- Motility & Motion Analysis
- DNA Analysis
- Metallurgical Microscopy
- Semiconductor Inspection
- Manufacturing Quality Control
- Failure Analysis
- Forensic Analysis
|
Evolution VF Digital Kit
The High Performance Camera for Brightfield or Fluorescence Applications
明視野或螢光觀察專用數位影像系統 |
Overview
Evolution VF 數位照相設備先進的 interline CCD 感應器是專門針對明視野或螢光影像所設計，擁有 12-bit 數位輸出及 140 萬畫素的高解析度。 高速且低雜訊的設計搭配瀕臨值的選擇，擷取速度最快可達每秒 110 張影像。 IEEE1394 介面使其安裝更加貼近使用者，機身本體無須外接電源線及可經由連接電腦使用。 |
 |
|
CCD Sensor |
|
| 解析度 |
1.4 million, 1392 x 1040 |
| 瀕臨值 |
2x2, 4x4, 8x8 |
| ROI (Region Of Interest) |
From 1x1 pixels up to full resolution, continuously variable in single pixel increments |
| 曝光時間 |
12 μ s to 17.9min. in 1 μ s increments |
| 晶片類型 |
Sony ICX205 Progressive Scan Interline CCD, Monochrome, or Color |
| Pixel 大小 |
4.65 μ m x 4.65 μ m |
| Linear Full Well Capacity |
10,000 e - |
輸出雜訊 |
< 12 e - |
| 冷卻功能 |
Yes |
| 冷卻類型 |
Peltier Thermoelectric cooling to 25 degrees Celsius below ambient |
| 數位輸出 |
12-bit |
| 輸出頻率 |
20, 10, 5, 2.5MHz |
| Frame Rate |
10fps full resolution @ 12-bits, 165fps maximum with binning and ROI* |
Camera |
|
| 作業系統 |
Microsoft R |
Windows |
| 介面 |
IEEE 1394 FireWire ? |
| Sustained Image Data Rate |
40 MB/s |
| Shutter Control |
Electronic shutter, no moving parts |
| 外部驅動 |
TTL Input |
| 驅動方式 |
Internal, Software, External |
| External Sync |
TTL Output |
| Gain Control |
0.6 to 15 times |
| Offset Control |
Controlled by software |
| Optical Interface |
? ” , C-Mount optical format |
| Threadmount |
? ” -20 mount |
| Power Requirements |
6 watts non-cooled; 11 watts cooled; 8-24V |
| 重量 |
595g; cooled 865g |
| 保固 |
2 years |
| 操作環境 |
0 to 35 degrees Celsius (32 to 95F) |
| 溼度 |
Less than 80% at 35 degrees Celsius (95F) |
|
Evolution MP 5.0 RTV Megapixel FireWire? Digital CCD Color Camera
|
The Ultra High Resolution Digital Camera
高階數位彩色影像擷取系統 |
Evolution MP 5.0 即時影像系統擁有 500 萬畫素 CCD 感應器，其雖具有 500 萬畫素的高解析度，但並不會降低預覽及擷取上的速度。為了符合使用者不同的需求，提供多種解析度與擷取速度上的選擇。
Evolution MP 5.0 擁有傳統 IEEE 1394 介面，並利用熱電式冷卻方式 (thermoelectric cooling) 將溫室控制在室溫 10 度以下。 |
 |
|
Evolution MP 5.0 RTV 特性
• 具 500 萬畫素 CCD 感應器，可獲得高解析影像品質
• 即時影像預覽及對焦模式， 500 萬畫素下每秒 25 個影像
• 瀕臨值最多可達 4X4 ，在預覽影像及對焦時速度更迅速
• ROI(Region of Interest) 功能，可框選影像內特殊區域範圍
• 曝光時間由 1.6 毫秒至 18 分鐘，調整範圍最小可至百萬分之 1 秒
•Peltier 冷卻模式可降低擷取低亮度影像時，因長時間曝光所產生的熱雜訊
• 36-bit RGB 三原色影像，紅綠藍三原色分別為 1024 intensity levels
• IEEE1394 介面使安裝更為簡易方便
• 主機電源由 IEEE1394 連接電腦所提供， CCD 主體不需外接電源供電使用
• 可藉由 Image-Pro Plus 驅動並擷取影像 |
|
Evolution MP 數位影像擷取設備 |
| Imaging Chip |
|
| 類型 |
2/3” Sony ICX-282 CCD |
| 解析度 |
2560 x 1920, 1280 x 960, 640 x 480 (user-selectable) |
| Pixel 大小 |
3.4μm x 3.4μm |
| 輸出頻率 |
20, 10, 5, 2.5MHz |
| 最高輸出速度 |
25fps full field of view, higher fps with ROI functions |
| 擋板 |
Electronic shutter, no moving parts |
| 降溫方式 |
Optional Peltier thermoelectric cooling to 10°C below ambient |
| Electrical |
|
| 電壓 |
12 volts |
| 電源 |
3.8W (non-cooled); 6.7W (cooled); 8-24V |
| Physical |
|
| 重量 |
710g |
| Lens mount |
C-mount, 2/3” optical format for microscope or camera lens,
plus a 1/4”-20 tripod mount |
| Interface |
|
| 操作系統 |
WindowsR 2000 & XP |
| 檔案格式 |
12-bit |
| 介面 |
IEEE 1394 FireWire |
| Maximum Data Rate |
20 MHz at 8-bit and 10 MHz at 12-bit |
| 保固 |
2 年 |
|
