產品訊息 / 科學儀器部 /數位影像系統 /Photometrics Cascade

Photometrics Cascade


•Cascade 1K
•Cascade 128+
•Cascade 512B
•Cascade 512F
•Cascade 650
•Cascade II 512
•Cascade II 1024

CCD camera 數位影像系統 Cascade 1K
Cascade 1K
  • Good quantum efficiency
  • 10-MHz operation
  • Front-illuminated, frame-transfer CCD
  • <1 e- rms read noise (with on-chip multiplication gain enabled)
  • Megapixel detector cooled to -30°C
  • Low-noise electronics
  • Shutterless acquisition
  • 100% duty cycle
  • 16-bit images
  • Primary Point Digitization?
  • No external controller unit required
  • Standard C-mount
晶片類型 Texas Instrument TC285 ; Front-Illuminated, Frame-transfer CCD with on-chip multiplication gain
解析度 1004 x 1002 image array
Pixel 大小 8μm x 8μm
Linear Full Well 30,000 e – (single pixel)
讀取雜訊 15 e - @ 10MHz
暗電流 0.5 e -/p/s@-30 ℃
CCD 溫度 -30 ℃
數位模式 16bit @10MHz



CCD camera 數位影像系統 Cascade 128+
Cascade 128+
  • >500 full frames per second

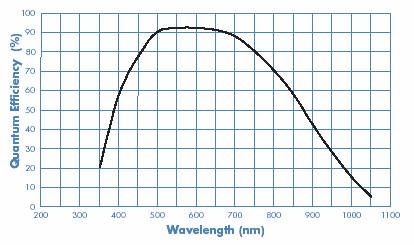

  • Highest quantum efficiency
  • 12-MHz operation
  • Back-illuminated, frame-transfer CCD
  • <1 e- rms read noise (with on-chip multiplication gain enabled)
  • Small-array detector cooled to -30°C
  • Low-noise electronics
  • Shutterless acquisition
  • 100% duty cycle
  • 16-bit images
  • Primary Point Digitization?
  • No external controller unit required
  • Standard C-mount
晶片類型 e2v CCD60 ;back-illuminated, Frame-transfer CCD with on-chip multiplication gain
解析度 128 x 128 image array
Pixel 大小 24μm x 24μm
Linear Full Well 250ke- (single pixel)
讀取雜訊 <65 e - @ 12MHz
暗電流 <1 e -/p/s@-30 ℃
CCD 溫度 -30 ℃
數位模式 16bit @12MHz

CCD camera 數位影像系統 Cascade 512B

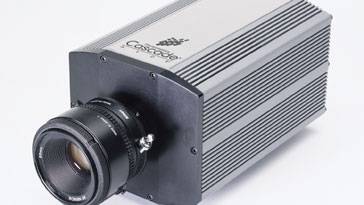

Cascade 512B
  • Highest quantum efficiency
  • Dual-amplifier design
  • Multiple-speed operation (10, 5, or 1 MHz)
  • Back-illuminated, frame-transfer CCD
  • <1 e- rms read noise (with on-chip multiplication gain enabled)
  • Detector cooled to -30°C
  • Low-noise electronics
  • Shutterless acquisition
  • 100% duty cycle
  • 16-bit images
  • Primary Point Digitization?
  • No external controller unit required
  • Standard C-mount
晶片類型 e2v CCD97 ;back-illuminated, Frame-transfer CCD with on-chip multiplication gain
解析度 512 x 512 image array
Pixel 大小 16μm x 16μm
Linear Full Well 200ke- (single pixel)
讀取雜訊 60 e - @ 10MHz
暗電流 1 e -/p/s@-30 ℃
CCD 溫度 -30 ℃
數位模式 16bit @10MHz

CCD camera 數位影像系統 CoolSNAP 512F
Cascade 512F
  • Good quantum efficiency
  • Dual-amplifier design
  • Multiple-speed operation (10, 5, or 1 MHz)
  • Front-illuminated, frame-transfer CCD
  • <1 e- rms read noise (with on-chip multiplication gain enabled)
  • Detector cooled to -30°C
  • Low-noise electronics
  • Shutterless acquisition
  • 100% duty cycle
  • 16-bit images
  • Primary Point Digitization?
  • No external controller unit required
  • Standard C-mount
晶片類型 e2v CCD87 ;front-illuminated, Frame-transfer CCD with on-chip multiplication gain
解析度 512 x 512 image array
Pixel 大小 16μm x 16μm
Linear Full Well 250ke- (single pixel)
讀取雜訊 60 e - @ 10MHz
暗電流 1 e -/p/s@-30 ℃
CCD 溫度 -30 ℃
數位模式 16bit @10MHz

CCD camera 數位影像系統 Cascade 650

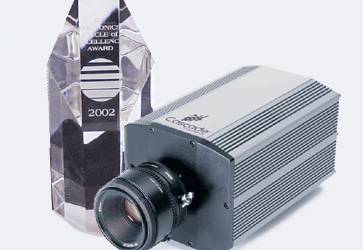

Cascade 650
  • Good quantum efficiency
  • Dual-speed operation (10 or 5 MHz)
  • Front-illuminated, frame-transfer CCD
  • <1 e- rms read noise (with on-chip multiplication gain enabled)
  • Detector cooled to -35°C
  • Low-noise electronics
  • Shutterless acquisition
  • 100% duty cycle
  • 16-bit images
  • Primary Point Digitization?
  • No external controller unit required
  • Standard C-mount
晶片類型 Texas Instruments TC253 ;front-illuminated, Frame-transfer CCD with on-chip multiplication gain
解析度 653 x 492 image array
Pixel 大小 7.4μm x 7.4μm
Linear Full Well 27,000e- (single pixel)
讀取雜訊 25 e - @ 10MHz and 5MHz
暗電流 1 e -/p/s@-35 ℃
CCD 溫度 -25~ -35 ℃
數位模式 16bit @10MHz and 5MHz

CCD camera 數位影像系統 Cascade II 512
Cascade II 512
  • Detector thermoelectrically cooled to -80°C
    No bulky chilled-water circulators or cryogenic compressors
  • Vacuum guaranteed for entire lifetime of detector

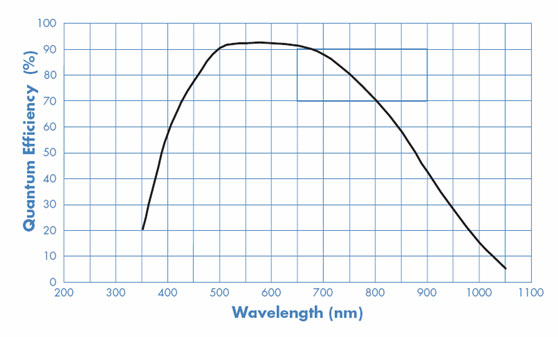

  • Back-illuminated, frame-transfer EMCCD (>90% peak QE)
  • Flexible subregion readout and binning
  • 512 x 512-pixel array (16-μm pixel pitch)
  • Two independent readout amplifiers
  • PCI card included
  • 100% duty cycle
  • PVCAMR compatibility
  • Standard C-mount
  • 16-bit images
  • Multiple-speed operation (10, 5, or 1 MHz)
  • Individual camera calibration and certification
晶片類型 e2v CCD97 ;back-illuminated, Frame-transfer EMCCD with on-chip multiplication gain
解析度 512 x 512 image array
Pixel 大小 16μm x 16μm
Linear Full Well 200ke- (single pixel)
讀取雜訊 45 e -@ 5MHz 60e-@10MHz
暗電流 0.008e -/p/s@-70℃
CCD溫度 -70℃
數位模式 16bit @10MHz,5MHz,1MHz


CCD camera 數位影像系統 Cascade II 1024
Cascade II 1024
  • Excellent field of view, sensitivity, and resolution
  • 1024 x 1024-pixel array (13-μm pixel pitch)
  • Detector thermoelectrically cooled to -60°C
  • Vacuum guaranteed for entire lifetime of detector

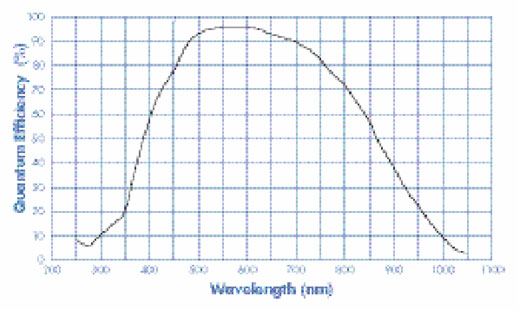

  • Back-illuminated, frame-transfer EMCCD (>90% peak QE)
  • Flexible subregion readout and binning
  • Two independent readout amplifiers
  • PCI card included
  • 100% duty cycle
  • PVCAMR compatibility
  • Standard C-mount
  • 16-bit images
  • Multiple-speed operation (10, 5, or 1 MHz)
  • Individual camera calibration and certification
晶片類型 e2v CCD201 ;back-illuminated, Frame-transfer EMCCD with EM gain
解析度 1024 x 1024 image array
Pixel大小 13μm x 13μm
Linear Full Well 80ke-(single pixel)
730ke- (EM gain amplifier)
讀取雜訊
(EM gain amplifier)		 ~35 e -@ 5MHz ~45e-@10MHz
暗電流 0.005e -/p/s (typical)
CCD溫度 -60℃
數位模式 16bit @10MHz,5MHz,1MHz
