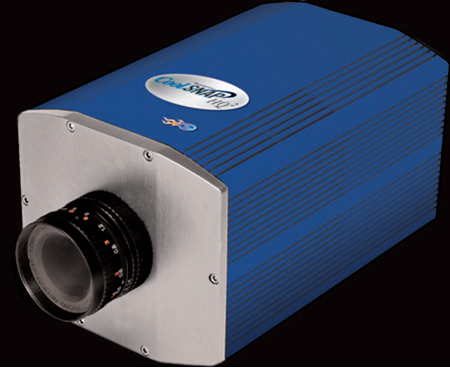

CCD camera 數位影像系統 CoolSNAP HQ 2
|
|
CoolSNAP HQ 2
- Turbo 1394 interface
- Live-cell imaging
- High-speed emission ratio imaging
- Low-copy gene analysis and gene expression profiling
- Quantitative FRET, FRAP, FISH
- Luminescence
|
 |
|
| 晶片類型 |
SonyR ICX285; interline-transfer, progressive-scan device with microlenses |
| 解析度 |
1392 x 1040 imaging array |
| Pixel 大小 |
6.45 x 6.45-μm pixels |
| Linear Full Well |
16,000 e- (single pixel) |
| 讀取雜訊 |
4.5 e- rms @ 10 MHz
5.5 e- rms @ 20 MHz |
| 暗電流 |
0.001 e-/p/s @ -30°C |
| CCD溫度 |
-30°C (regulated) |
| 數位模式 |
14 bits @ 20 MHz or 10 MHz (software selectable)
12 bits @ 20 MHz or 10 MHz (software selectable) |
|
 |
 |

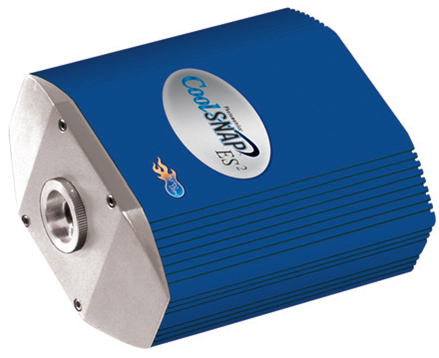

CCD camera 數位影像系統 CoolSNAP ES 2
|
|
CoolSNAP ES 2
- Turbo 1394 interface
- Fixed-cell imaging
- Immunofluorescence
- Quantitative FISH, FRAP, FRET
- Ion concentration imaging
- Near-infrared (NIR) DIC
|
|
|
| 晶片類型 |
SonyR ICX285; interline-transfer, progressive-scan device with microlenses |
| 解析度 |
1392 x 1040 imaging array |
| Pixel 大小 |
6.45 x 6.45-μm pixels |
| Linear Full Well |
2 13,500 e- (single pixel) |
| 讀取雜訊 |
<8 e- rms @ 20 MHz |
| 暗電流 |
.01 e-/p/s |
| CCD溫度 |
- 0°C |
| 數位模式 |
16bit @10MHz, 5MHz, 1MHz |
|
|
|
CCD camera 數位影像系統 CoolSNAP EZ
|
|
CoolSNAP EZ
- Turbo 1394 interface
- Fixed-cell imaging
- Immunofluorescence
- FISH
- Ion concentration imaging
- Near-infrared (NIR) DIC
- 12-bit imaging
|
|
|
| 晶片類型 |
SonyR ICX285; interline-transfer, progressive-scan device with microlenses |
| 解析度 |
1392 x 1040 imaging array |
| Pixel 大小 |
6.45 x 6.45-μm pixels |
| Linear Full Well |
12,300 e- (single pixel) |
| 讀取雜訊 |
<8 e- rms @ 20 MHz |
| 暗電流 |
1 e-/p/s |
| CCD溫度 |
5°C below ambient |
| 數位模式 |
12 bits @ 20 MHz |
|
 |
 |
CCD camera 數位影像系統 CoolSNAP cf 2
|
|
CoolSNAP HQ 2
- Turbo 1394 interface
- Fixed-cell fluorescence
- 36-bit color imaging
- Pathology
- Histology
- DIC phase-contrast imaging
- Darkfield imaging
|
|
|
| 晶片類型 |
SonyR ICX205AL; interline-transfer, progressive-scan device with microlenses |
| 解析度 |
1392 x 1040 imaging array |
| Pixel 大小 |
4.65 x 4.65-μm pixels |
| Linear Full Well |
10,200 e- |
| 讀取雜訊 |
10 e- rms @ 20 MHz |
| 暗電流 |
<1 e-/p/s |
| CCD溫度 |
5°C below ambient |
| 數位模式 |
12 bits @ 20 MHz |
|
|
|

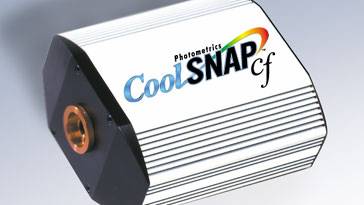

CCD camera 數位影像系統 CoolSNAP cf |
|
CoolSNAP cf
- 20-MHz digitizer
- Megapixel CCD with very small pixels
- Good quantum efficiency
- Subcompact, fanless design
- Low-noise electronics
- Shutterless acquisition
- Primary Point Digitization
- No external controller unit required
- Auxiliary video output (optional, monochrome model)
- Standard C-mount
- No stand-alone power unit required
|
| 晶片類型 |
Sony ICX205AL, interline-transfer, Progressive device with microlenses |
| 解析度 |
1.4 million, 1392 x 1040 |
| 瀕臨值 |
1x1, 2x2, 3x3, 4x4, 8x8 |
| Gain |
3 e - /ADU |
| 非線性 |
< 5% |
| Pixel 大小 |
4.65μm x 4.65μm |
| Linear Full Well |
9700 e - |
| 讀取雜訊 |
15 e - rms @ 20MHz |
| 暗電流 |
1.3 e -/p/s |
| 操作環境 |
15-30 度 |
| 數位模式 |
12bit @ 20MHz |
|
| |
|
CCD camera 數位影像系統 CoolSNAP K4 |
|
• Four-megapixel CCD
• Detector cooled to -25°C
• Good quantum efficiency
• 12-bit, 20-MHz digitizer
• Low-noise electronics
• Shutterless acquisition
• Primary Point Digitization
• No external controller unit required
• Standard C-mount Extensive I/O port
|
| 晶片類型 |
Kodak KAI-4020M ; interline-transfer, progressive –scan device with microlenses |
| 解析度 |
2048 x 2048 image array |
| 非線性 |
< 1% |
| Pixel 大小 |
7.4μm x 7.4μm |
| Linear Full Well |
30,000 e – (single pixel)
60,000 e – (2 x 2 binned pixel) |
| 讀取雜訊 |
<10 e - @ 20MHz |
| 暗電流 |
0.1 e -/p/s@-25 ℃ |
| CCD 溫度 |
-25 ℃ |
| 數位模式 |
12bit @ 20MHz |
|
 |
 |
