THE COST-EFFECTIVE IMAGE CAPTURE AND ENHANCEMENT SOLUTION FROM THE IMAGE-PRO FAMILY
Experience the Speed and Quality of Image-Pro Express… |
擷取 Acquire

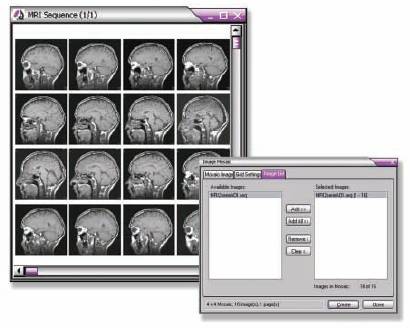

• 可擷取、製造及播放連續影像圖檔
• 可由 cameras, scanners 或 electronically 儲存檔案
• 使用者可自訂間隔時間以擷取多張影像圖檔 |
 |
|
增強 Enhance
• 可以 Display Range 調整圖檔亮度對比
• 以 Contrast Enhancement 調整亮度、對比、 Gamma 值
• 可在同一視窗下同時觀察原始檔案及局部放大圖檔
• 軟體內建多種螢光染劑以供灰階圖檔套色選擇
特殊處理 Process
• 降低及校正背景功能
• 濾片功能包含 Low-Pass, Hi-Pass, Gaussian, Hi-Gaussian, Sharpen, Flatten, Median, Rank 及 Local Equalization

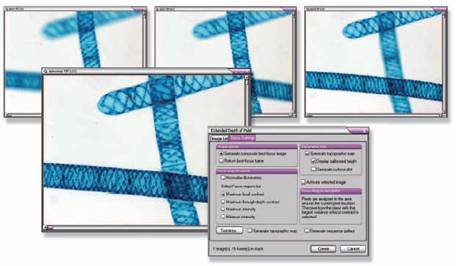

• 可將連續拍攝的多張不同焦圖檔整合得到一張焦距清晰的影像

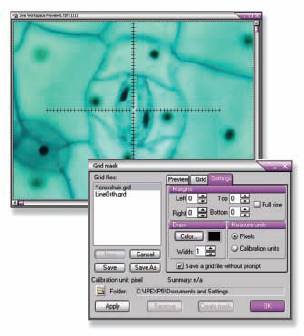

• 擷取影像時可將十字線置入
• 可將彩色圖檔之 RGB 三色個別分離為三張單色圖檔 |
| |
|
|

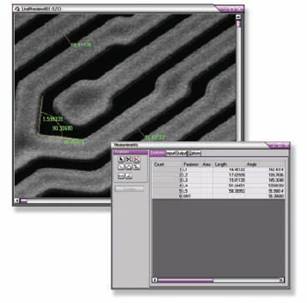

測量 Measure
• 亮度及空間上的量測
• 可在圖檔上標記刻度
• 在預覽模式仍可即時測量
• 可將量測的資料以 EXCEL 檔案格式輸出 |
|
分析 Analyze
• 計算直線、圓或隨意曲線的長度及面積
• 可以原始檔案或直條圖表現測量結果
• 可在有興趣的區域註解或管理測量
• 可快速的測量圖檔中影像的距離
註解 Annotate
• 可加註文字敘述或簡單的座標或箭頭
• 更改套色 |
|
|

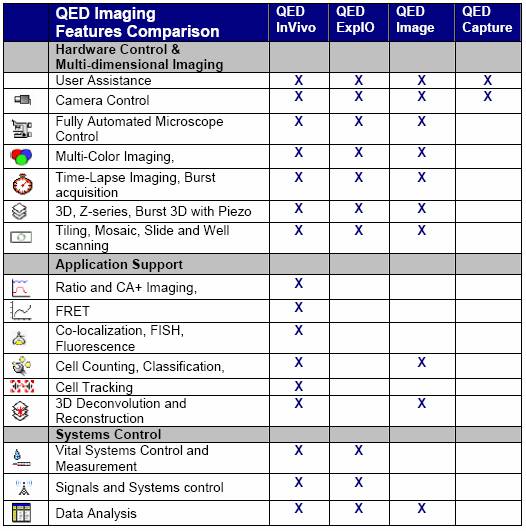

Automated Acquistion and Analysis for Life Science |
Acquire

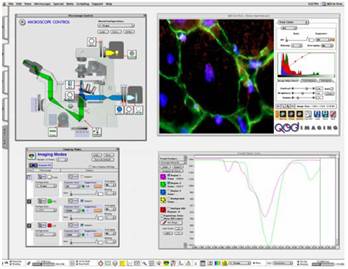

Simplified Camera Control Automated Microscope Control The Microscope Control Tool provides interactive and automated control for a variety of microscope systems and additional hardware. Easily control multiple shutters, filtercube changers, scanning stages, focus controls, objective selection, and spectral devices (laser, monochromator, or AOTF) – all from a single window. |
 |
|

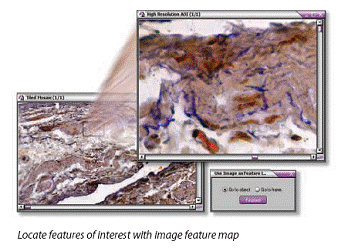

| Tiling, Mosaic, Slide and Well Scanning Multi-Color Imaging QED Imaging includes 3D, multi-color image acquisition at the click of a button. Define any combination of acquisition flow using an intuitive user interface. No coding is needed. |
 |
|

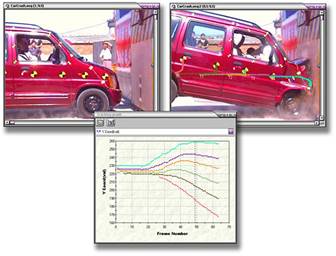

Time-lapse image and Burst Acquisition Perform high-speed imaging and motion analysis.
|
|

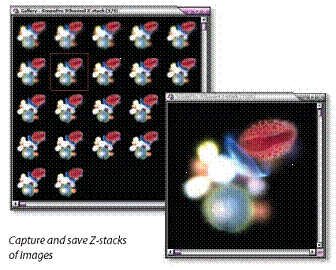

3D, Z-series, and Burst 3D with Piezo
QED Imaging supports fast XYZ scans including well plates and whole slide scans. The 3D cquire Tool offers easy control of focus drives. |
|
|
|
Analyze
Morphometric Measurements Analysis and Classification Colocalization, Translocation, FISH, and Fluorescence
Access all the necessary tools to quantitatively measure colocalization and effectively interact with the presentation of area, intensity distribution and information. As a result, statistical analysis can quickly be provided for both whole image statistics and user defined ROI statistics.
Ratio, FRET, and Calcium Imaging Cell Tracking |
Manage & Discover
Vital Systems Control and Measurement Signals and Systems Control |
| A variety of signals can be generated from various components. With QED Imaging, you can control these devices or opt to have your devices control QED. You can trigger a burst acquisition when your temperature hits a preset level or trigger an event each time you capture an image. |
|
|
Data Analysis, Recording, and Reporting
 |
