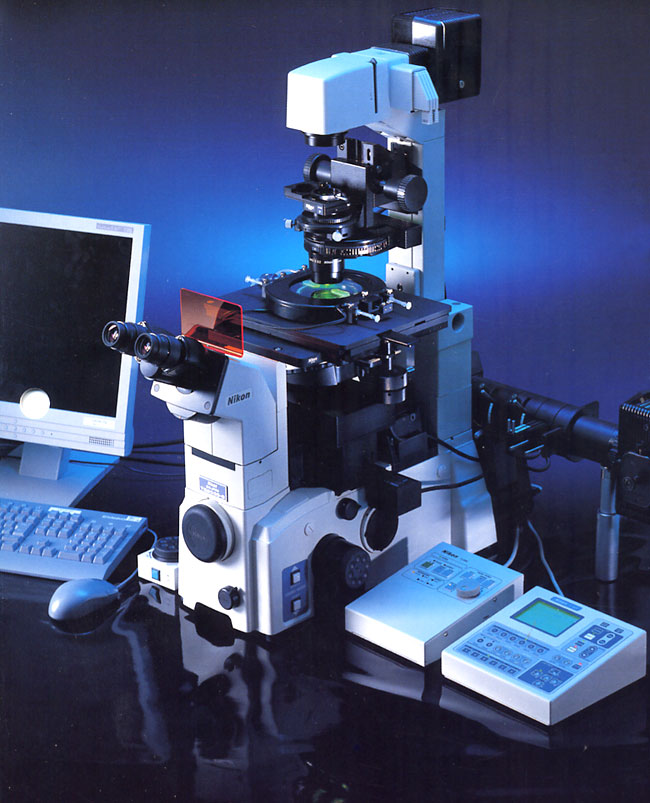

產品訊息 / 科學儀器部 /微操作系統 /Nikon NT-88-V3
|
|
|
Narshige 最新微操作科技介紹─NT-88V3 |
|
 |
此系統以簡御繁，其簡易的操作方式卻能將微操作繁複又苛求極度標準的工作完美表現。

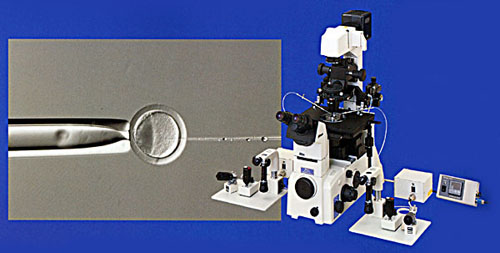

總而言之，NT-88NE系統的優越性在於它不僅可達到絕佳的精確度，更可方便讓使用者輕鬆裝卸及操作。這套微操作系統提供精卵注射(ICSI)人工受孕(IVF)及生物科技等研究領域時最理想的工具。其特色如下： |
|
 |
|
|
|
|
|

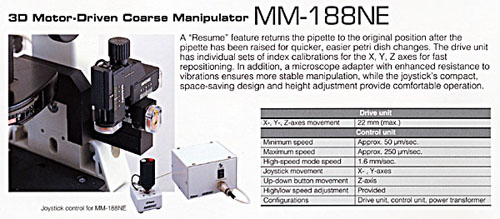

1. MM-188NE─三維電動粗調
首先，此調節器具有自動回歸功能，意即當真管(PIPETTE)升起，讓使用者快速更換培養皿後，針管會回到原始的位置。此原理乃利用驅動馬達內附之X.Y.Z.軸指示刻度之快速歸位裝置。另者，顯微鏡接環亦有強化及防震效能，搭配上尺寸適中的搖桿，符合節省空間的設計，MM-188NE堪稱提供微操作穩定即舒適操作的頭號功臣。 |

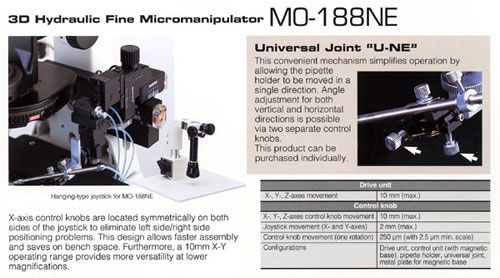

2. MO-188NE─三維手動油壓微調
搖桿之左右兩側平行對稱-X軸控制旋鈕用以消除左右邊定位問題，這項設計提供迅捷的操作並節省空間。此外，10mm、X、Y的操控間距亦提供低倍率的迴旋空間。

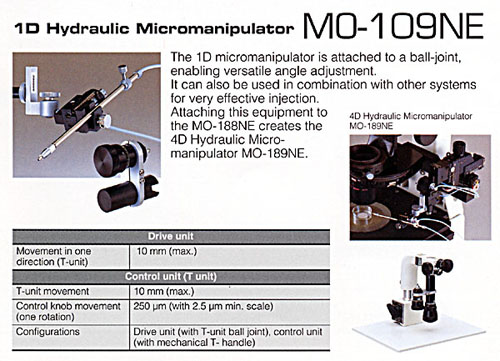

3. MO-109NE─一維油壓微調
這套系統利用圓珠接環使用吸管能作多角度的調整。
4. MO-189NE─四維油壓微調
這套系統原是將MO-188NE及MO-109NE連結起來，重新組合，除既有之3D移動外，更提供了完全防震及斜面注射位移。

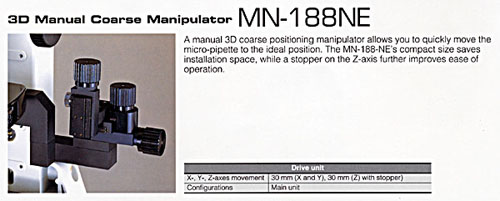

5. MN-188NE─三維手動粗調
手動式3D粗調定位微操作器能使您快速地將微量吸管移致您理想的位置。MN-188NE尺寸精簡不佔空間，此外，其Z軸上的制止閥門更加提昇了操作的便利。

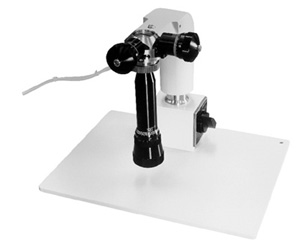

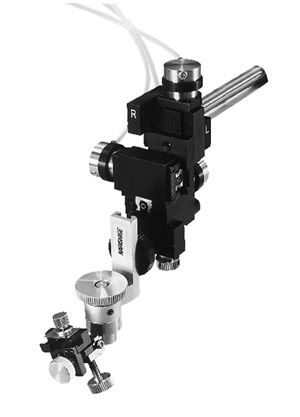

6. MO-202D Three-axis Hanging Joystick Oil Hydraulic Micromanipulator |
|
|
Ideal for users seeking familiar features with the popular hanging type joystick.This oil hydraulic micromanipulator enables smooth threedimensional movements with a single lever. A major advantage is inclusion of a hanging type joystick, which enjoys wide popularity because it is much less tiring to operate. Furthermore, in response to requests from experienced users, several features that were discontinued from this model are now restored. The vertical adjustment section is placed right above the magnetic stand: this changes the height of the control unit and allows the control knob to be fully rotated for 500�刞. A slim drive unit or a UT-2 as both available as accessories, enhancing ease of use and winning warm approval from users.*For attachment to the microscope, a coarse manipulator and suitable adaptor are required (sold separately).
*Select Type B adaptor for mounting this manipulator in combination with MMN-1 coarse manipulator.
*Changing the universal joint that attaches the micromanipulator to such double pipette holder as HDO-20 (sold separately) enables performance of embryo biopsy.
*Changing the universal joint that attaches the micromanipulator to MMO-220 single-axis oil hydraulic micromanipulator enables four-dimensional remote controlled movement. |
Specification
| Accessories |
IP Iron Plate, UT-2 Universal Joint,
CF-3 Tube Fixture, Allen Wrench |
| Movement range |
Fine |
X10mm, Y10mm, Z10mm
Full rotation of knob: 500um
Minimum graduation: 5um |
| Joystick (for maximum movement in X-Y plane) 2mm |
| Dimensions/Weight |
Control unit |
W165 X D80 X H175, 2.2kg |
| Drive unit |
W40 X D39 X H82mm, 0.17kg |
|
| 7. MM-87 Motor-drive Manipulator |
| |
Motor-drive coarse manipulator with convenient rotation mechanism.This motor-driven coarse micromanipulator enables remote controlled movement of a pipette into a microscope observation field. A return mechanism is equipped, as on the MM-89, and also a rotation mechanism, making pipette exchange quick and easy. As this model is motor-driven, it is easy to manipulate with the joystick.
|
Specification
| Accessories |
Power Supply Cable, Allen Wrench |
| Movement range |
Coarse |
X22mm, Y22mm, Z22mm |
| Power source |
AC100V�i�}5%�j, AC120V�i�}5%�j,
AC220V�i�}5%�j, AC240V�i�}5%�j |
| Power consumption |
Approx. 15W |
| Dimensions/Weight |
Power supply |
W125 X D105 X H85mm, 1.5kg |
| Contorol unit |
W55 X D75 X H120mm, 0.3kg |
| Drive unit |
W67 X D136 X H145mm, 0.68g |
|
| 8. MM-89 Motor-drive Manipulator |
| |
Coarse manipulator with most popular motor-drive system.This motor-driven coarse micromanipulator enables remote controlled movement of a pipette into a microscope observation field. The bigger the microscope, the more difficult manual control becomes; remote control is the mainstream alternative. Control is easy, with the joystick right at the operator's hand, and a return mechanism facilitates pipette exchange.
|
Specification
| Accessories |
Power Supply Cable, Allen Wrench |
| Movement range |
Coarse |
X22mm, Y22mm, Z22mm |
| Power source |
AC100V�i�}5%�j, AC120V�i�}5%�j,
AC220V�i�}5%�j, AC240V�i�}5%�j |
| Power consumption |
Approx. 15W |
| Dimensions/Weight |
Power supply |
W125 X D105 X H85mm, 1.5kg |
| Control unit |
W55 X D75 X H120mm, 0.3kg |
| Drive unit |
W63 X D102 X H104mm, 0.5g |
|

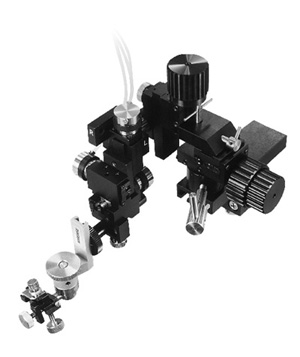

| 9. MWS-2 Micromanipulator (Three-Axis Oil Hydraulic System) |
|
|
Micromanipulator with compact joystick.This is a three-dimensional oil hydraulic micromanipulator with joystick control, mounted on the MWS-1, a combination that makes microinjections under a stereo microscope easier and more efficient. Compared to conventional alternatives, this unit is much more compact and suitable for use with stereo microscopes.*For attachment to the microscope, a suitable adaptor is required (sold separately).
*Changing the universal joint that attaches the micromanipulator to MMO-220 single-axis oil hydraulic micromanipulator enables four-dimensional remote controlled movement.Specification
| Accessories |
IP Iron Plate, UT-2 Universal Joint,
CF-3 Tube Fixture, Allen Wrench |
| Movement range |
Coarse |
X15mm, Y15mm, Z15mm |
| Fine |
X10mm, Y10mm, Z10mm
Full rotation og knob 500um
Minimum graduation 5um |
| Joystick (for maximum movement in X-Y plane) 2mm |
| Dimensions/Weight |
Control unit |
W165 X D80 X H175mm, 2.2kg |
| Drive unit |
W115 X D120 X H110mm, 490g |
|
| |
| |
|
10. Double Pipette Holders
11. Microinjectors
12. Motor-drive Microinjectors
13.Micropipette Processing Device
14. Manipulator Mounting Adaptors for Nikon Microscopes |
|
